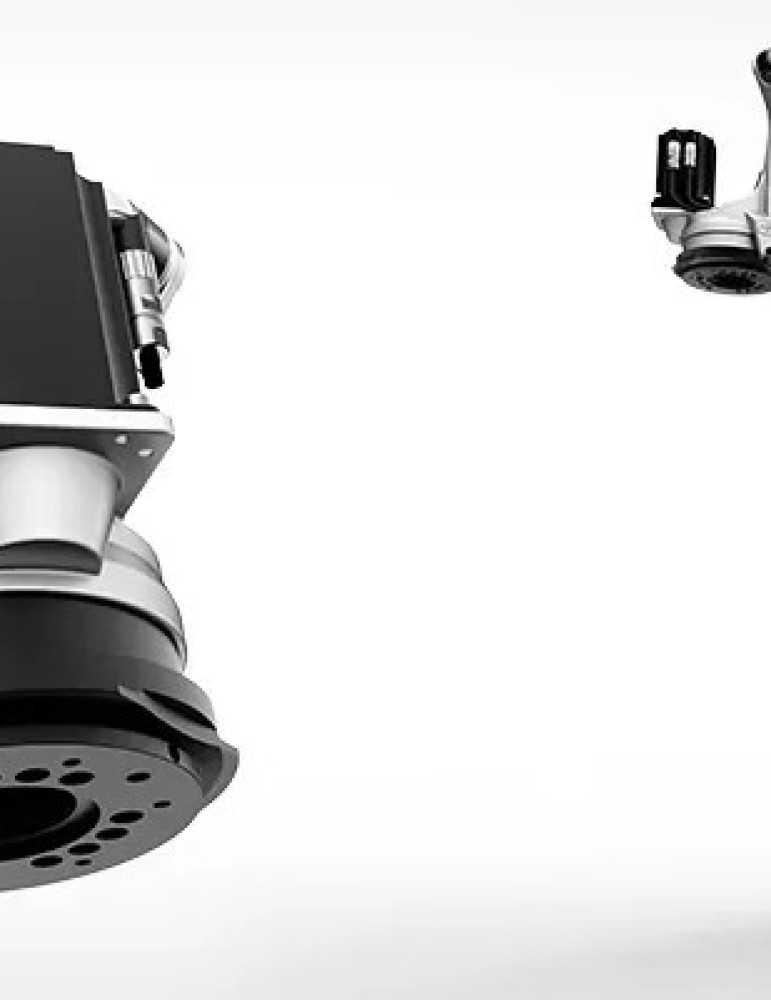

Handle with Speed
Specifically designed for palletizing, handling and high-speed operations, this innovative robot delivers performance levels that may even surprise you.
What can do
- Handling
- Handling / Packaging
- Pallettizing
Technical specifications PAL-260-3.1
| Number of axes | 4 |
| Maximum wrist payload (Kg) | 260 |
| Additional load on forearm (Kg) | 50 |
| Maximum horizontal reach (mm) | 3100 |
| Stroke (Speed) on Axis 1 | +/- 180° (120°/s) |
| Stroke (Speed) on Axis 2 | -49° / + 95° (90°/s) |
| Stroke (Speed) on Axis 3 | -68° / – 208° (110°/s) |
| Stroke (Speed) on Axis 4 | – |
| Stroke (Speed) on Axis 5 | – |
| Stroke (Speed) on Axis 6 | +/- 2700° (260°/s) |
| Repeatability (mm) | 0.10 |
| Tool coupling flange | ISO 9409 – 2 – 200 – 6 – M12 |
| Robot weight (Kg) | 1213 |
| Protection class | IP65 |
| Mounting position | Floor / Shelf |
| Operating Areas A (mm) | 3147 |
| Operating Areas B (mm) | 3099 |
| Operating Areas C (mm) | 952 |
| Operating Areas D (mm) | 1182 |
