You’re Good to Go
With reduced weight and exceptional trajectory control, these robots deliver higher speeds and shorter cycle times. In other words, exactly what your applications demand.
What can do
- Assembly
- Machine Tending
- Dispensing
- Cosmetic Sealing
- Handling / Packaging
- Measuring Testing
- Polishing Deburring
- Arc Welding
- Plasma Cutting Water Jet
- Press Brake Bending
- Processing Machining
- Wood-Glass Machining
- Foundry
- Laser Welding Cutting
- Press to Press

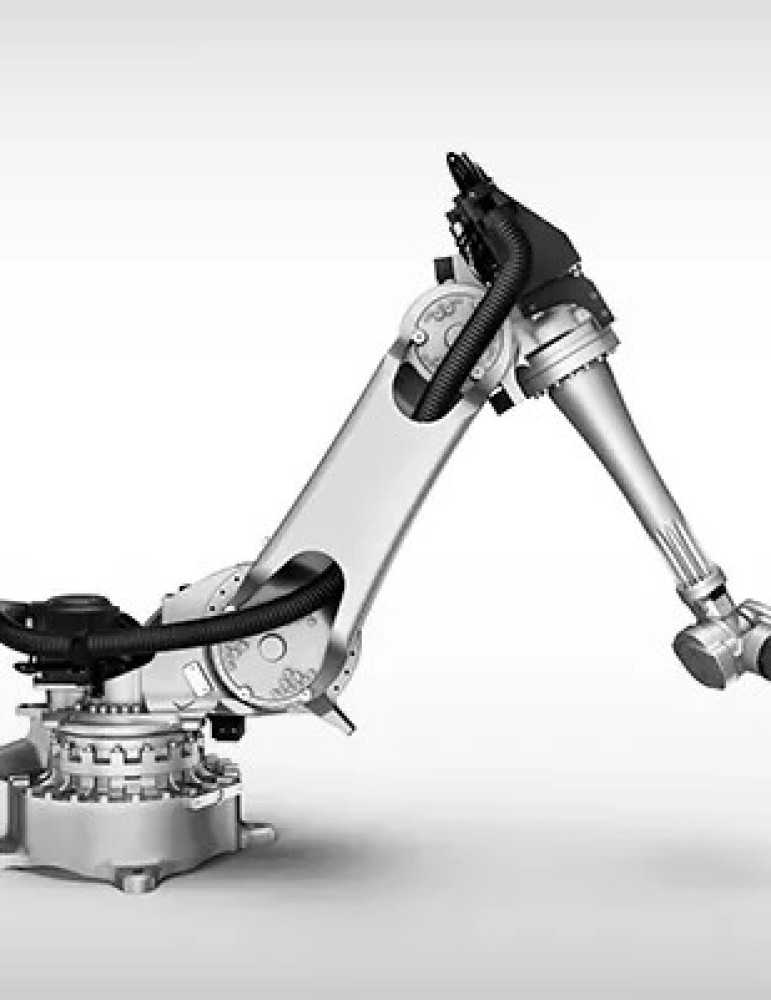

Technical specifications NJ-60-2.2
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 60 |
| Additional load on forearm (Kg) | 20 |
| Maximum horizontal reach (mm) | 2258 |
| Torque on axis 4 (Nm) | 221 |
| Torque on axis 5 (Nm) | 221 |
| Torque on axis 6 (Nm) | 118 |
| Stroke (Speed) on Axis 1 | +/- 180° (170°/s) |
| Stroke (Speed) on Axis 2 | -60° / +125° (150°/s) |
| Stroke (Speed) on Axis 3 | 0° / -165° (165°/s) |
| Stroke (Speed) on Axis 4 | +/- 2700° (265°/s) |
| Stroke (Speed) on Axis 5 | +/- 123° (250°/s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (340°/s) |
| Repeatability (mm) | 0.06 |
| Tool coupling flange | ISO 9409 – 1 – A100 |
| Robot weight (Kg) | 645 |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (max 45°) |
| Operating Areas A (mm) | 2408 |
| Operating Areas B (mm) | 2258 |
| Operating Areas C (mm) | 1918 |
| Operating Areas D (mm) | 686 |
| Operating Areas E (mm) | 941 |
