Easy use by powerful Software
• Built-in cutting optimizer software
• Powerful controller TPA including the most advanced software with 3D real time graphic simulation with messages for the operator
• Easy to use with optimized functions
Highlights
Powerful pusher for panel movement
• Gripper's projection 90 mm
• Rack-pinion pusher travel system
• Sliding on high quality round linear guides
• Max accuracy up on double measuring system thanks to magnetic tape and servo
Grooving system on automatic sequence
Cut-out
Side Aligner 50-1100mm
Practical and reliable blade change system (easy change) by using only 1 key
Depth grooving regulation and Scoring regulation.
High stability linear guides in all axes

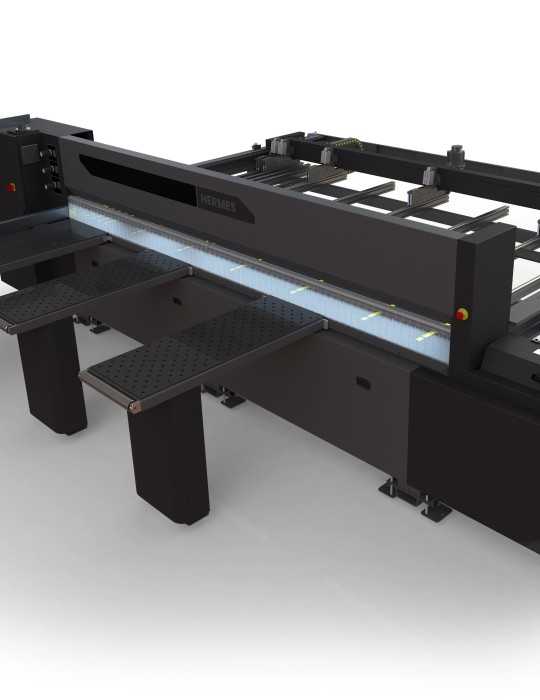

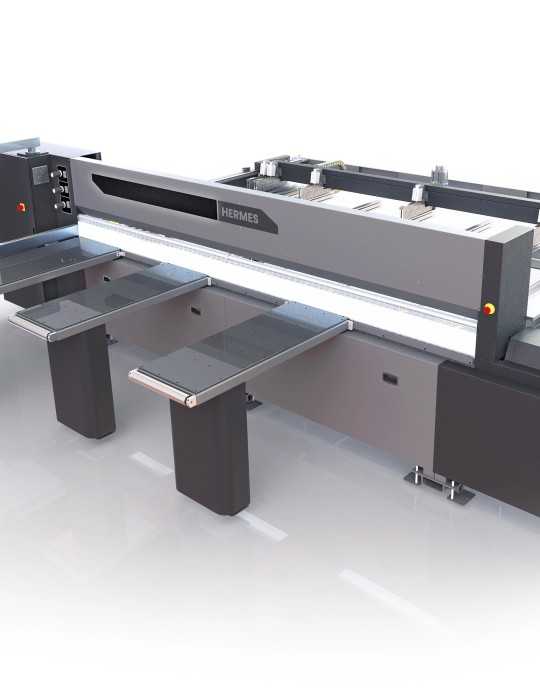

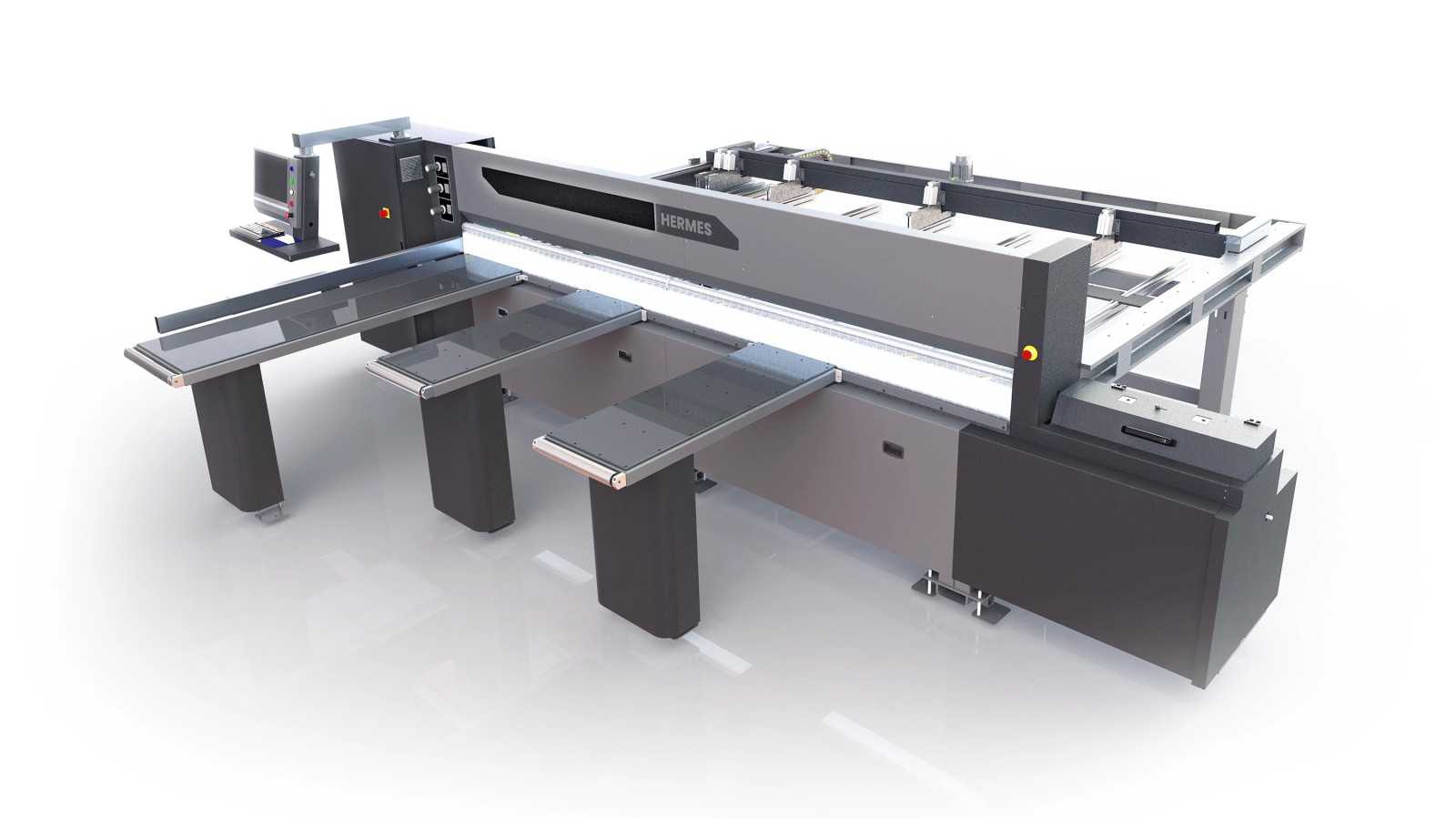

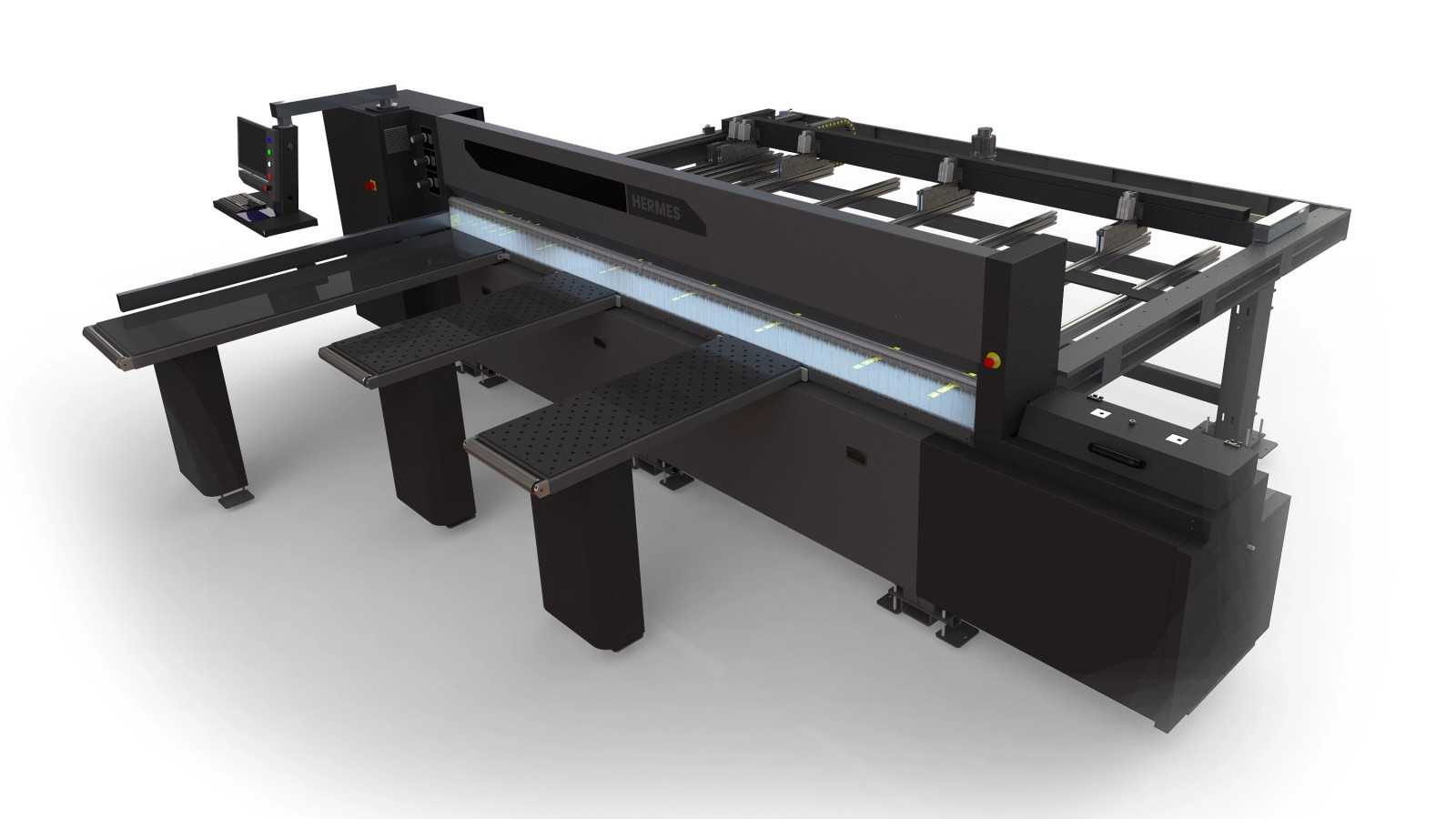

Images
Technical Data
| Cutting length | 2900 mm, 3200 mm, 3800 mm |
| Pusher opening | 2100 mm |
| Blade projection | 65 mm |
| Main saw diameter | 300 mm |
| Scoring saw diameter | 160 mm |
| Main motor power | 7.5 hp |
| Saw carriage speed | 5-70 m/min |
| Pusher's travel speed | 0-40 m/min |
| Automatic side aligner | 50-110 mm |
| Controller | TPA |
| Optimizer software | OPTICUT Lite |
| 3D visualization software with processing | Beamboard |
| PC with accessories | W11, SSD, WiFi, LAN |
| Monitor | DELL 24’’ |
| Pressure beam with special clamp slots (Sheets remain firmly held until the final cut) | |
| Quick blade change system | |
| Scoring with micro-adjustment capability both vertically and horizontally | |
| CE safety rules. Rear safety fence and hands protection curtain | |
| Electrical Control Panel: Featuring EtherCat technology | |
| Magnetic Tape: (Pulse generator - contactless system) for precise guide measurement | |
| Remote Support: Available via internet connection | |
