Easy use by powerful Software
• Built-in cutting optimizer software
• Powerful controller TPA including the most advanced software with 3D real time graphic simulation with messages for the operator
• Easy to use with optimized functions

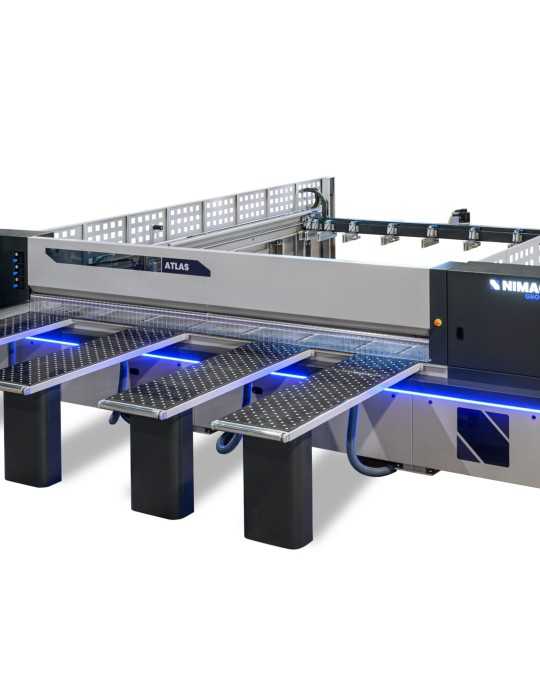

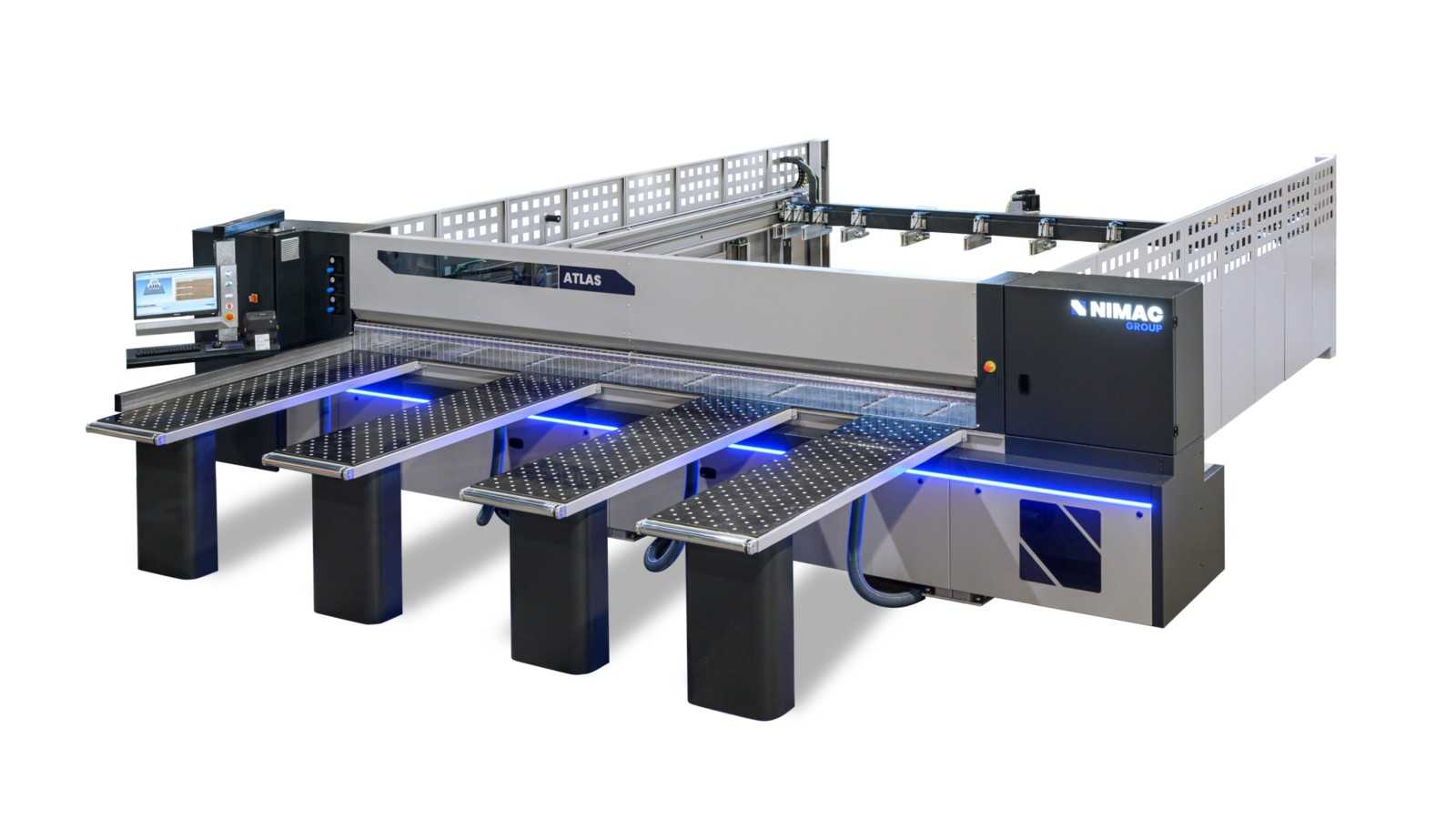

ATLAS 100
New generation’s beam saws
The most competitive European beam saw in the category of 5 panels cutting height (105 saw blade projection)
Highlights
Powerful pusher for panel movement
• Gripper's projection 90 mm
• Rack-pinion pusher travel system
• Sliding on high quality round linear guides
• Max accuracy up on double measuring system thanks to magnetic tape and servo
Precision LED System
🔵(blue light) Rip Cut - Piece not finished, needs to be repositioned in the machine
🟢(green light) Finished panel - offload
⚪(white blinking light) Indicated precise panel positioning - Error - free system
Automatic Side Aligner
Automatic side aligner for panels
Images- Video
Technical Data
| Cutting length | 3200 mm, 3800 mm, 4400 mm |
| Blade projection | 105 mm |
| Main saw diameter | 355 mm |
| Scoring saw diameter | 160 mm |
| Main motor power | 10 hp, 15 hp, 20 hp |
| Scoring saw power | 2 hp |
| Saw carriage speed | 5-120 m/min |
| Pusher's travel speed | 0-60 m/min |
| Automatic side aligner | 50-1100 mm |
| Controller | TPA |
| Optimizer software | OPTICUT Lite |
| 3D visualization software with processing | Beamboard |
| PC with accessories | W11, SSD, WiFi, LAN |
| Monitor | DELL 24’’ |
| Pressure beam with special clamp slots (Sheets remain firmly held until the final cut) | |
| Quick blade change system | |
| Scoring with micro-adjustment capability both vertically and horizontally | |
| CE safety rules. Rear safety fence and hands protection curtain | |
| Electrical Control Panel: Featuring EtherCat technology | |
| Magnetic Tape: (Pulse generator - contactless system) for precise guide measurement | |
| Remote Support: Available via internet connection | |
