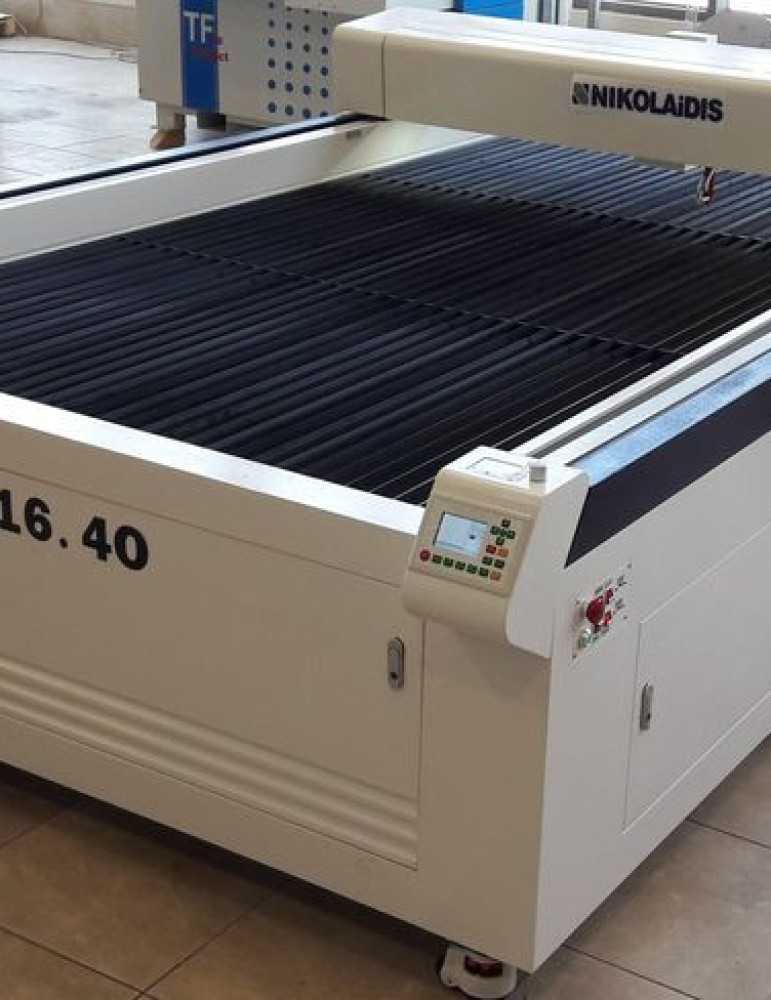

LASER HELIOS 1640

CNC Laser for cutting leather,artificial leather, fabric and other non metal materials

MACHINE OPERATION DIRECTLY BY DESIGN PROGRAMS AS CORELDRAW OR CAD

APPLICATIONS

Architectural models, Workshops and Training institutes , Medical technology, Industrial production machine (Textile, Leather Techno leather - cloth).

packaging design, advertising, Rubber stamps, Signs, Smartphones and Laptops - Label -Logotypa etc.

MATERIALS

Acrylic, Films, sponge, glass, Melaminoucha, Leather, Metal, Paper, Plastic, Rubber, Marble - Stone, Textile, Wood.

working dimensions 1) 1300x2500mm 2) 1600x2500mm 3) 1800x3000mm 4) 2000x3000mm 5) 2000x6000mm,* Optionally - the machine can be manufactured in any desired working dimensions;Industrial belt (synchronous belt) for axes movement; Stepping segmentation motors;Prismatic guides HIWIN; Capacity in cutting metal and non-metallic objects;Power supply 100 Watt for Laser;Laser cooling by water circulation and automatic protection;Independent power supply for controller and motor;Customization of machine according to the customer's requirements;Shorter character formulation 1.0mmx1.0mm;Cutting speed 0-30000m / min;Accuracy location ? + 0.01mm;Digital control with industrial precision
