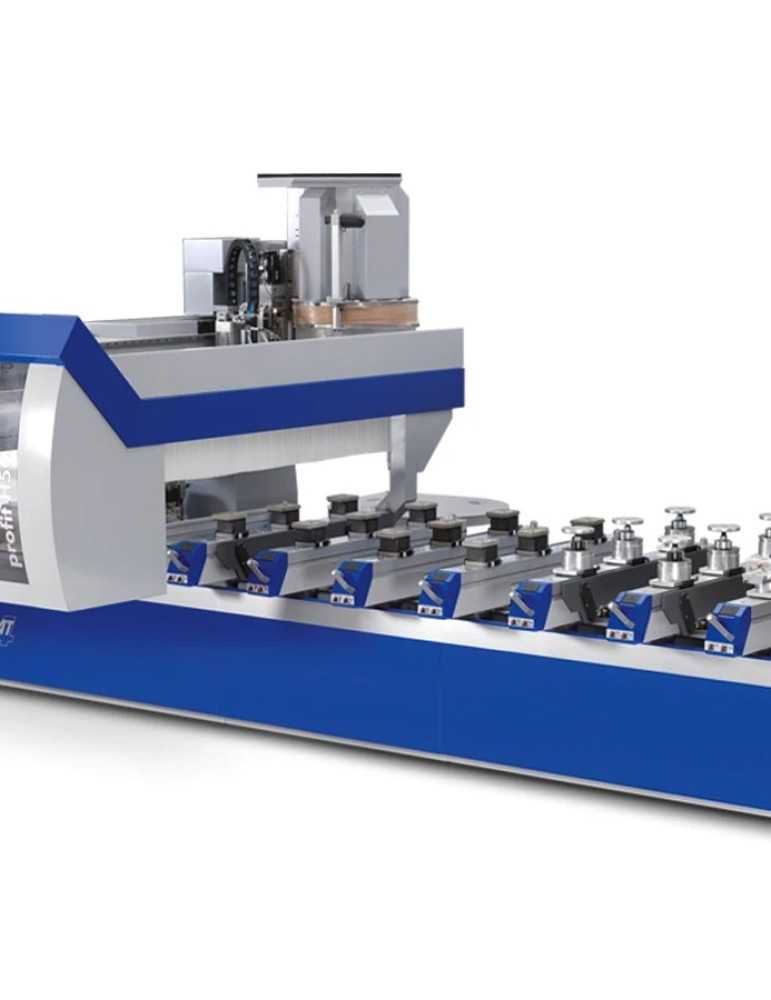

Profit H50 USED 5-AXIS WORKING CENTER- HEAVY TYPE

• Useful dimensions 3740Χ1570mm

• Speeds X=80m/min Y=80m/min Z=30m/min

• Z350mm

• 5-axis head with 12 kw Water-cooled Motor

• HSK-F63 taper

• Total tool changes: 35 positions----Tool changer 10 positions on the left. Additional mobile mill 24 positions on the side + 1 Cassette disc change externally

• DH18 multi-drill head with: 12 vertical drills 4 horizontal in X and 2 horizontal in Y. X-axis

• 6 consoles

• 90m3 pump

• Laser suction cup positioning system

• Chip deflection system

• Wood flash software

• Bumper system. Protective pads-protective mat

• Sawdust belt

• Safety mat

• Year of construction 2015 1800 working hours

• Mobile control terminal for flexible machine operation

• Handheld terminal

• two editing fields for commuter occupancy

• UPS Uninterruptible Power Supply

• 3D simulator

• continuous stop ruler in Y direction

• 2.controlled compressed air connection for units

• additional locking C-axis
