NG 1530 Router CNC | NIMAC
CNC ROUTER from NIMAC GROUP. Ideal and competitive solution for routing at wood and advanced materials (PVC, aluminum).

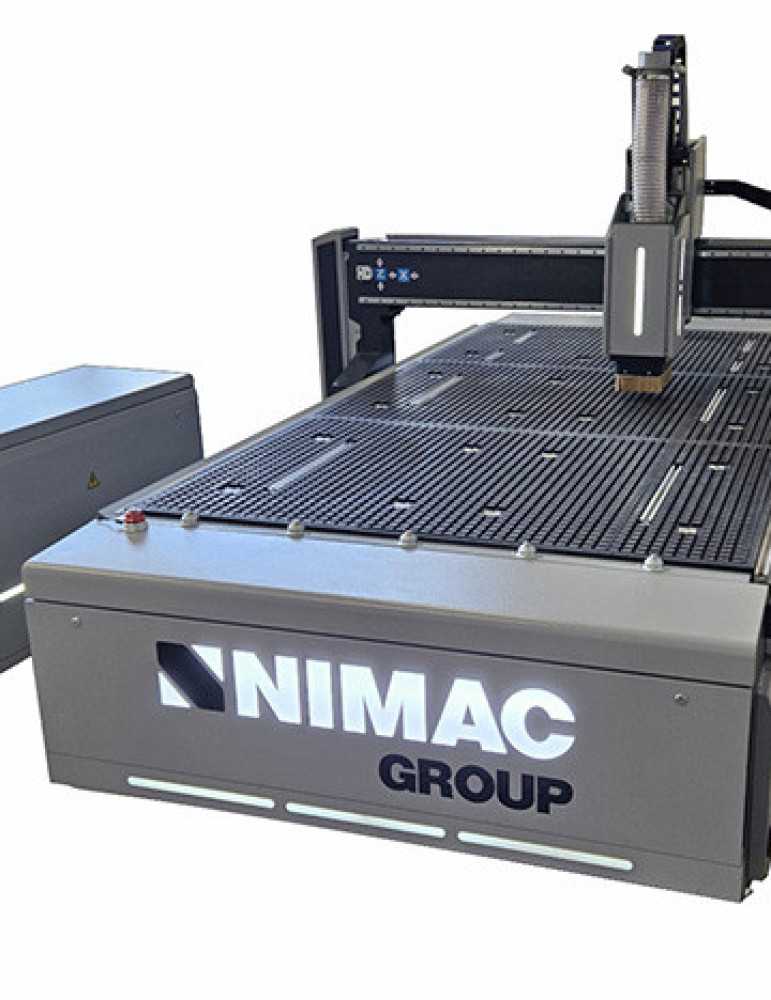

The NG1530 CNC router is suitable for machining composite materials such as PVC, aluminum, acrylics, etc.
Available in various sizes such as 2500x1300 mm, 3000x1500 mm, 3000x2000 mm and 4000x2000 mm.
File import from Alphacam, Artcam and other similar software.
Choice of motor power (from 4 kW to 9 kW).
8-tool magazine (optional extra).
Servo motor drive for absolute cutting accuracy.
- DSP A11 digital controller with industrial precision.
- Easy design, DXF file import.
- Heavy-duty machine construction.
- Industrial-grade helical rack.
- Leadshine (hybrid) servo motors. SHIMPO gearboxes (Japan).
- Maximum travel speed 30 m/min. Maximum machining speed 15 m/min.
- Hiwin 25 mm prismatic linear guides on the X, Y and Z axes.
- Cutting and engraving of materials such as wood, plastics, aluminum, plexiglass, Corian, etc.
- 6-9 kW spindle.
- Air-cooled spindle, linear control by 11 kW inverter.
- Optional automatic tool change. ISO cone holder.
- 5.5 kW vacuum pump.
- Overload and overvoltage protection for the servo motors.
- 12-month warranty.
- External dimensions 3100x2270x1900 mm. Weight 2000 kg.
